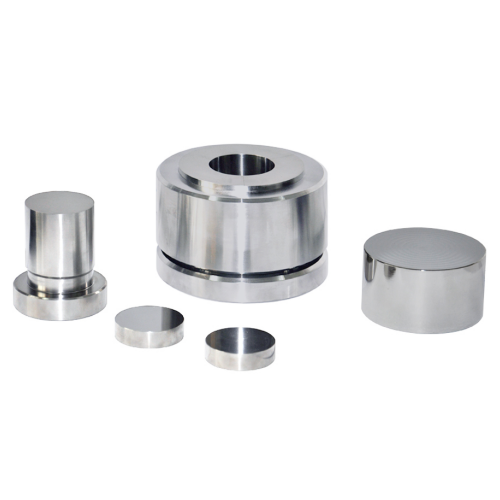

Dia45-80mm Hydraulic Press Cylindrical Opening Die Set Molds For Tablet Making
Introduction

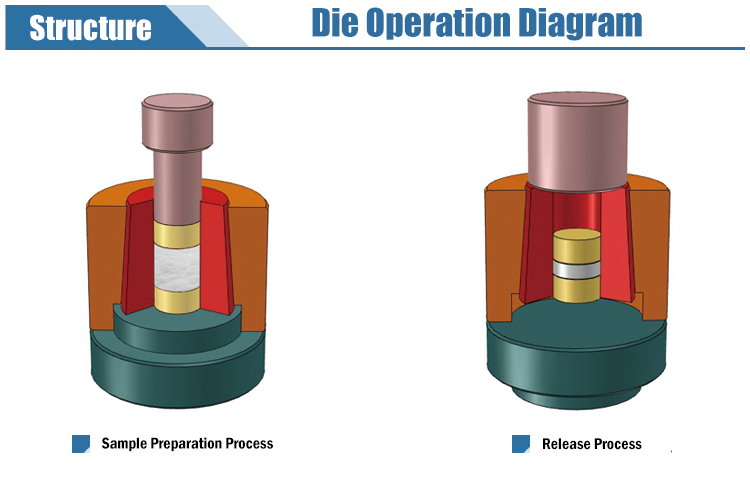

Cylindrical open-flap mold is suitable for the forming of ultra-fine powder or sample which is easy to be delaminated and cracked. The mold can solve the problem of sample deforming caused by sample expansion and deformation during the demoulding process by quickly opening the mold outer cover.
Technical parameters
Instrument model | PMK-YE |
Press the shape of the sample |  |
Mold material | Alloy Tool Steel: Cr12MoV |
Indenter hardness | HRC60-62 |
Sample size | Φ45/50/60/70/80 (M) |
Cavity depth | 60mm (N) |
Overall dimensions | Φ120*180mm/φ130*180mm/φ140*180mm/φ160*180mm (L*H) |
Mold weight | 8/10/15/20kg |

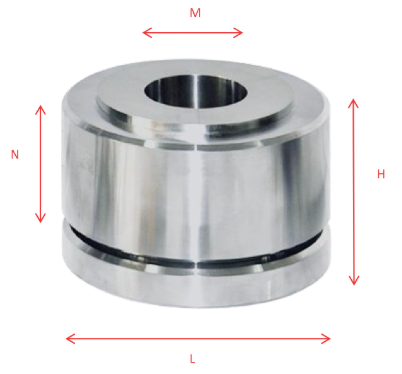

Schematic diagram of dimensions |  |
