Dia41-80mm Hydraulic Press Ring Mold Die Set For Powder Pallet Pressing
Introduction
Most ring-shaped molds are used in the catalytic industry or for forming some samples with holes. Square or multi-hole samples can also be customized. The outer diameter size of the pressed sheet: 3 to 40mm in diameter. Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMO-B |
Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ41-80mm (M) |
Cavity depth | 45mm (N) |
Overall dimensions | Φ88-128*120mm (D*H) |
Mold weight | 3.5/5kg |

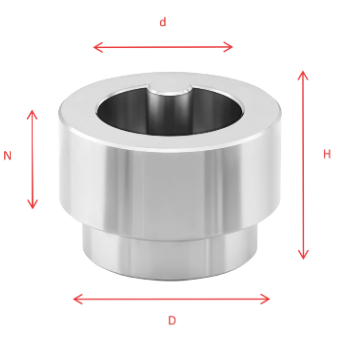

Schematic diagram of dimensions |  |
