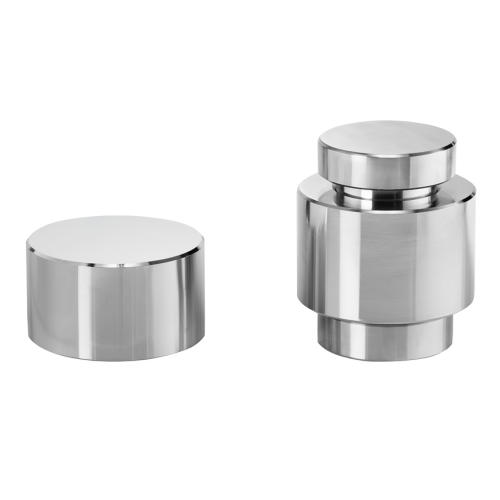

Dia41-70mm Cylindrical Dies Set For Hydraulic Tablet Machine Punching Press
Introduction
Cylindrical molds can be used for the molding and testing of most samples, with tablet sizes ranging from 41-100mm. Product tablet thickness :1 to 35mm; Bulk powder height: up to 50mm; Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMY-E |
Press the shape of the sample |  |
Mold material | Cr12MoV |
Indenter hardness | HRC60-62 |
Sample size | Φ41-50mm (M) |
Cavity depth | 50mm (N) |
Overall dimensions | Φ88-150mm (L*H) |
Mold weight | 5kg |

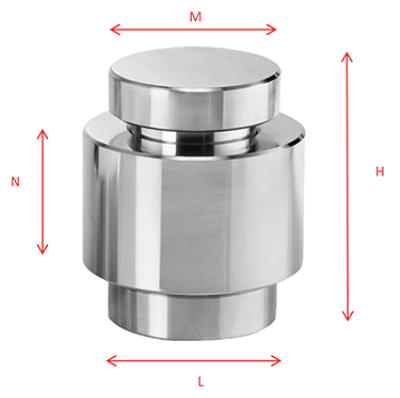

Schematic diagram of dimensions |  |
