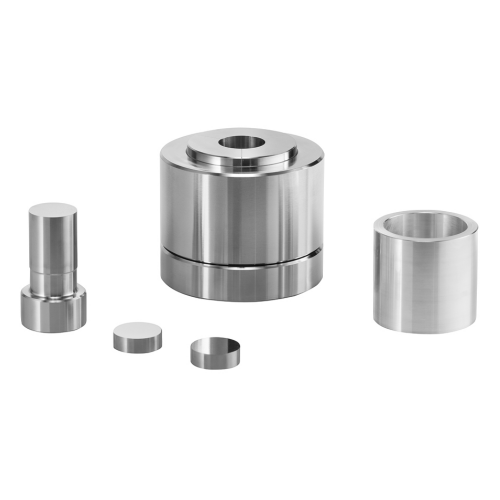

Dia15-25mm Hydraulic Press Cylindrical Opening Die Molds For Tablet Making
Introduction

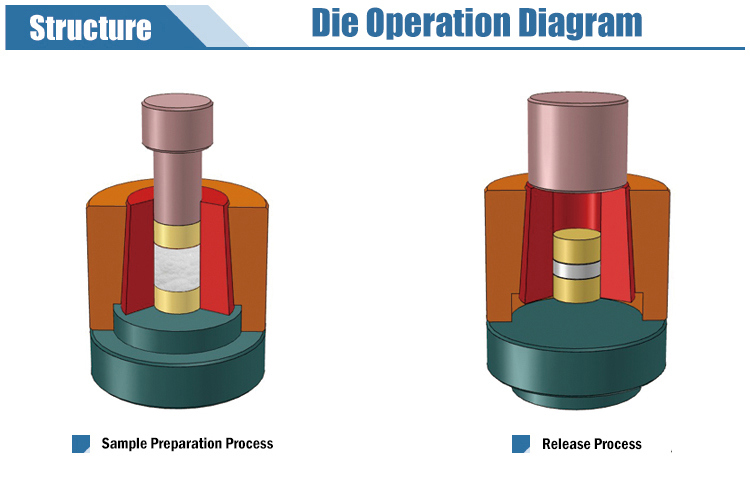

Cylindrical open-flap mold is suitable for the forming of ultra-fine powder or sample which is easy to be delaminated and cracked. The mold can solve the problem of sample deforming caused by sample expansion and deformation during the demoulding process by quickly opening the mold outer cover.
Technical parameter
Instrument model | PMK-YC |
Press the shape of the sample |  |
Mold material | 440C |
Indenter hardness | HRC60-62 |
Sample size | Φ15/16/17/18/19/20/21/22/23/24/25 (M) |
Cavity depth | 40mm (N) |
Overall dimensions | Φ78*110mm, φ80*110mm (L*H) |
Mold weight | 4kg. 5kg |

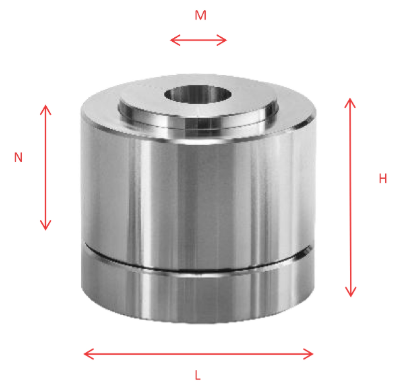

Schematic diagram of dimensions |  |
