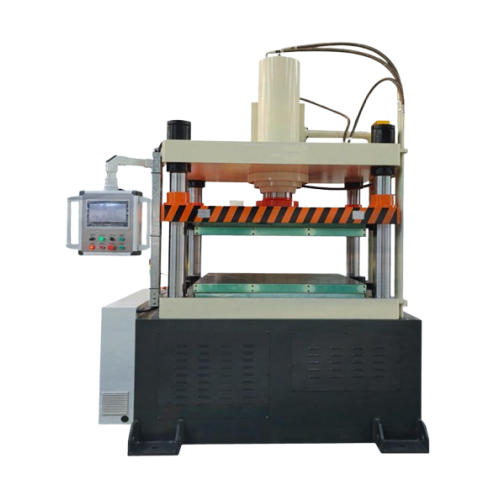

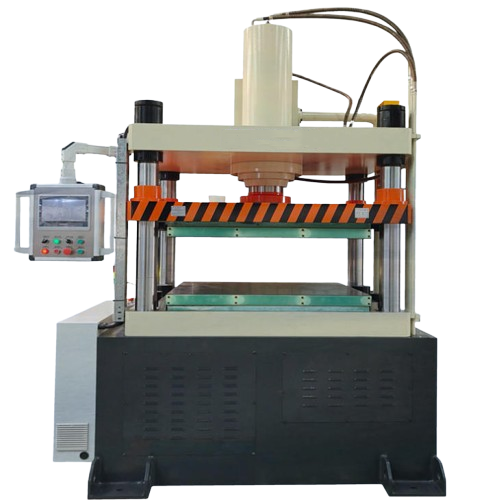

Automatic 40T-500T Four Column Servo Hydraulic Dual Heated Platen Hot Molding Press Machine
Parameter
Item | Unit | Specification&Model | |||||||
JLA1-40T | JLA1-50T | JLA1-60T | JLA1-100T | JLA1-200T | JLA1-300T | JLA1-500T | |||
Nominal Force | kn | 400 | 500 | 600 | 1000 | 2000 | 3000 | 5000 | |
Maximum Working Pressure | mpa | 20 | 20 | 19 | 20 | 20 | 24 | 25 | |
Main Cylinder Nominal Force | kn | 400 | 400 | 600 | 1000 | 2000 | 3000 | 5000 | |
Main Cylinder Maximum Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
Maximum Daylight Opening | mm | 550 | 550 | 550 | 600 | 600 | 650 | 650 | |
Moving Crossbeam Speed | o-load | mm/s | 210 | 210 | 200 | 180 | 175 | 175 | 175 |
Pressurization | mm/s | 20 | 18 | 15 | 15 | 10 | 8 | 6 | |
Return | mm/s | 210 | 190 | 180 | 180 | 165 | 165 | 165 | |
Worktable Effective Area | Left–Right (Inside Columns) | mm | 550 | 550 | 550 | 600 | 650 | 750 | 800 |
Front–Back (To Edge) | mm | 600 | 600 | 600 | 650 | 700 | 800 | 850 | |
Overall Dimensions | L | mm | 1130 | 1130 | 1130 | 1230 | 1250 | 1420 | 1550 |
W | mm | 950 | 950 | 950 | 1050 | 1320 | 1550 | 1850 | |
H | mm | 2455 | 2495 | 2510 | 2600 | 2610 | 2750 | 3150 | |
Motor Power | kw | 5.5 | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | |
Machine Weight (Approx.) | ton | 1.7 | 2.5 | 2.9 | 3.9 | 4.6 | 6.2 | 8.3 | |
Technical features
1. The equipment adopts an advanced hydraulic system with minimal failures, extremely high reliability, and low directional change impact.
2. The frame is constructed from solid steel plates welded and tempered, guided by graphite copper plate rails on all sides, ensuring high pressing precision and smooth operation.
3. The four columns are made of high-strength alloy steel, surface hard chrome-plated for excellent wear resistance.
4. It features an Italian brand motor and an intelligent human-machine interface control system, making operation simpler and more convenient.
5. The machine exhibits strong rigidity and high resistance to lateral forces. The oil cylinders are manufactured through integral forging technology and use Japanese NOK seals, providing excellent wear and sealing performance.
6. Working stroke, pressing time, and main pressure can all be adjusted.
Application industry
Note:
This model is suitable for powder pressing of both metallic and non-metallic products, such as tea blocks, salt blocks, dentures, iron products, and metallurgical materials, for compaction and shaping processes.

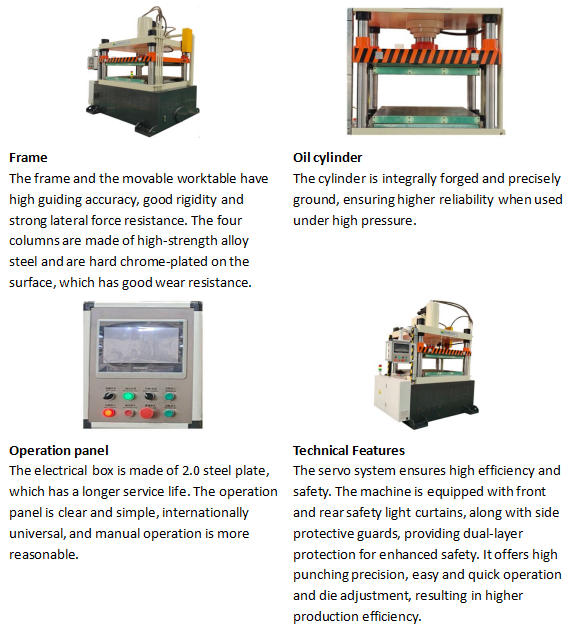

Details
