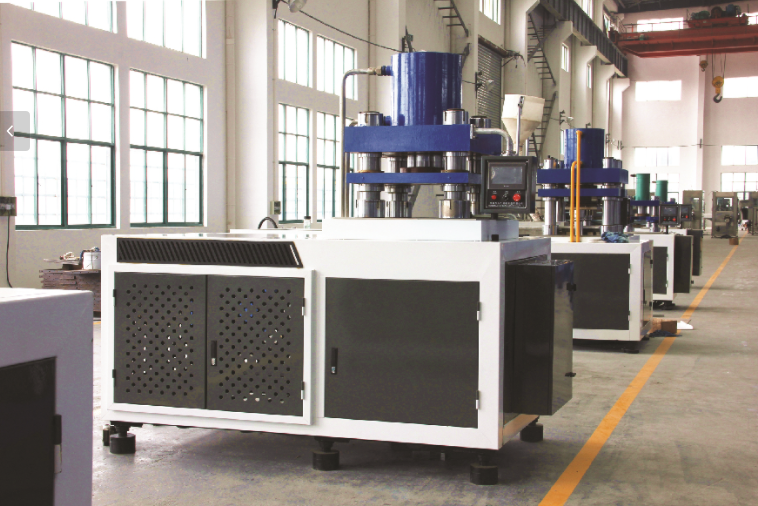

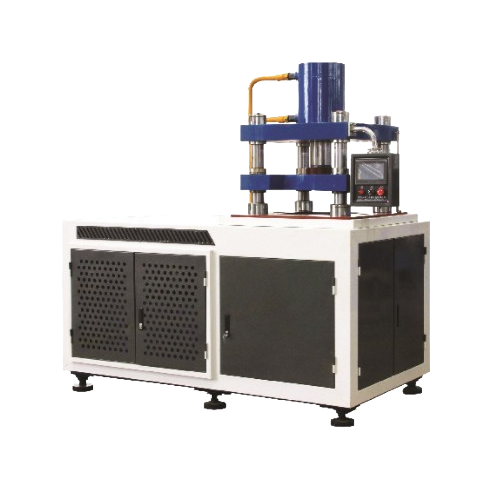

Automatic 100T Four-Column Double Layer Hydraulic Tablet Press Machine For Single/Multi Piece Stamping
Introduction
YST-100T type machine is a large-scale tablet press independently developed by our factory. It can press multiple granular, powdered and crystalline raw materials into various common and special-shaped tablets. High pressure and high stability. It can be used for tablet forming in various industries.
The entire equipment integrates the pressing system and the hydraulic system, presenting a simple, elegant and high-end appearance. The internal system adopts a professional hydraulic system imported from Taiwan, combined with PLC computer control. The entire movement is continuously automated. At the same time, it can avoid the problems of oil leakage and the need for frequent replacement of easily dirty oil.
The mold pressing part can produce multiple pieces at a time or a single piece at a time, meeting various customer requirements. The pressing time can be appropriately adjusted by the PLC. The operation and replacement of molds are simple and easy to understand, which greatly facilitates customers.
During the pressing process, limit contactors can be installed according to customer requirements to enhance production safety and quality.
Technical parameter
No | Model | YST-100 |
1 | Work pressure | 100T double-layer, upper and lower double oil cylinders, each with a pressure of 100 tons, capable of bidirectional tablet pressing |
2 | Upward stroke and downward stroke | Upward stroke: 150mm, The downward stroke is 100mm |
3 | Loading height | According to the actual product thickness and compression ratio |
4 | Output | 6 to 8 molds per minute, multiple pieces in one mold (depending on the actual pressure required for product molding) |
6 | Motor power | 11KW, 380V Siemens |
7 | Hydraulic system | Taiwan Xutian |
8 | PLC | Guangyang |
9 | Dimension | 800*1600*2200 |
10 | Weight | 4000KG |
