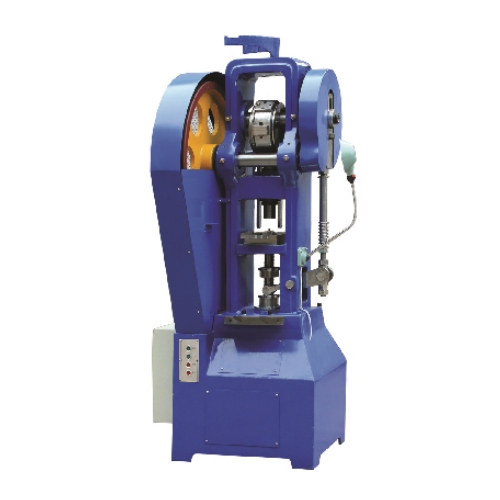

6T Small Flower Basket Type Single Punch Powder Tablet Press Machine

Introduction

THP series belongs to the mechanical tablet press. Used for molding process simple products. The main advantage is that:

1.High performance: Compact structure, less manufacturing cost, this kind of tablet press machine have obvious advantages in price.

2.Wide application: Can be used widely in many fields, it is a good choice in tablet forming that the requirement is not so strict.

Actual use characteristics of THP series:

1.Automatic production: This tablet pres machine can automatically Filing material, compressing, formed tablet, A person can operate several machines at a time

2.Easy maintenance: Principle and the structure is relatively simple,easy to learn and use, t is also very convenient from the production to daily maintenance.

3.Efficient time-saving: Because of its mechanical compressing advantages, it has very good performance in production speed,it can compress 20-30 cycles per minute

The THP-6 tablet press is suitable for the pressing and shaping of various powders, granules and crystals. Our factory independently manufactures and provides press molds, and can produce products of various shapes according to customer requirements.

The equipment pressure can be adjusted within a range of 6 tons, and the depth of the packing, that is, the height of the product after extrusion, can be adjusted within a certain range. The equipment is simple, safe and convenient to operate.

After the mold is installed and debugged, the raw materials are manually put into the material cylinder at the rear top of the equipment. Then, the power is connected and the working switch is turned on. The equipment can automatically complete the entire process of material feeding, pressing, and product ejection and pushing out. It is highly efficient and can operate multiple machines by one person at the same time.

Technical parameter
