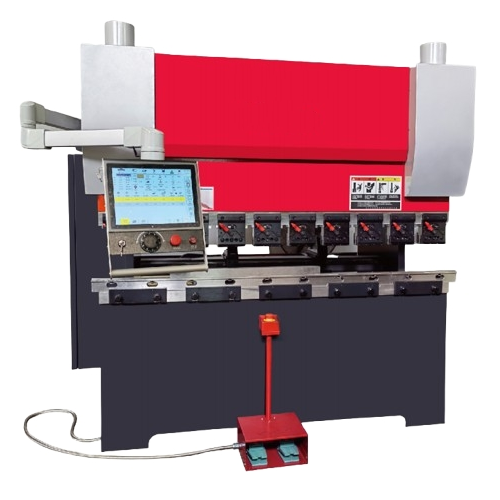

60T Full Electric Horizontal Servo CNC Bending Press Brake Machine
Introduction
The ES Series ball screw press brake is driven by an AC Servo motor and ball screw drive mechanism.It reaches high productivity with high-speed ram and high precision repeatability.This drive method is superior in environmental performance by ELECTRONIC and quiet in operation. When you need accuracy every time you can count on the ES Series!
Technical parameters
Processing capacity | 600NK (60T) |
Bending length | 2000mm |
Tablet height | 850mm |
Throat depth | 300mm |
Opening height | 400mm |
Bending stroke | 130mm |
Number of machine tool axes | 6 axis |
Y1, Y2 descent speed | 0-150mm |
Y1, Y2 pressurization speed | 0.2-50mm/s |
Y1, Y2 rising speed | 0-150mm/s |
X-axis stroke | 495mm |
X-axis speed | 600mm/s |
R-axis stroke | 150mm |
R-axis speed | 200mm/s |
Z1, Z2 stroke | 1450mm |
Z1, Z2 speed | 600mm/s |
Operating system | ES6 |
Dimensions | 2285*1440*2250 mm |
Total weight | 4500kg |
