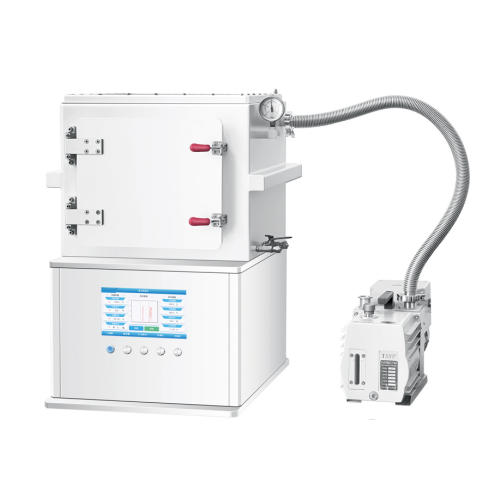

5T Laboratory Automatic Vacuum Hot Pallet Press Machine With 120x120mm Heating Plate
Technical parameters
Model | PP-600ZC | ||
Heating temperature | RT-300℃ | RT-500℃ | RT-800℃ |
Power | 1.6KW | 2KW | 4.5KW |
Pressure range | 0.1-5.0T | ||
Pressure accuracy | 0.1 ton | ||
Vacuum degree | -0.1Mpa | ||
Display screen | 7-inch touch screen | ||
Heating method | Multi-stage temperature control and pressurization program | ||
Data analysis | It can be optionally connected to a computer to perform functions such as data recording, analysis, comparison, modification and export | ||
Plate size | 120*120mm (m*n) | ||
Workspace | 150*60mm | ||
Cavity size | 300*200mm (M*N) | ||
Power supply | 220V/110V can be customized | ||
Size | Vacuum pump: 490*230*340 mm Presser: 480*560*750mm (L*W*H) | ||
Weight | Vacuum pump: 14kg Presser: 280kg | ||

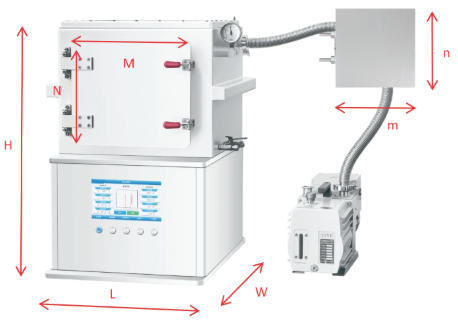

Schematic diagram of dimensions |  | ||
