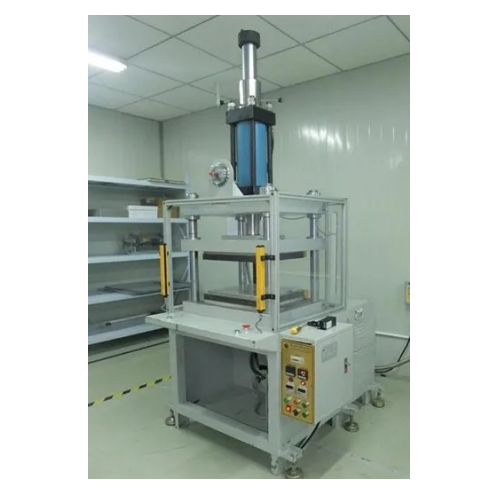

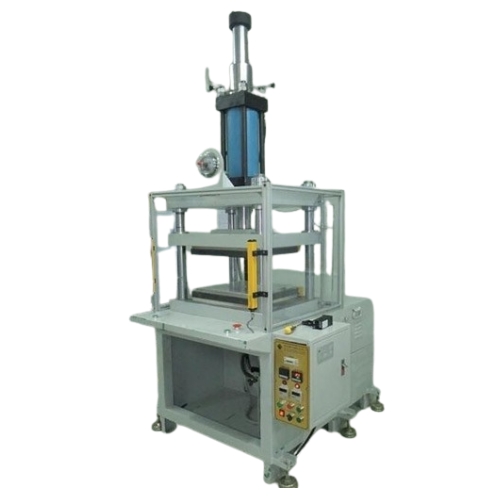

5T-25T Small Compact Hydraulic Hot Press Machine For PVC Material Lamination

Introduction
The hydraulic hot press adopts a four-column and three-plate structure. The upper and lower templates are equipped with heating devices and imported intelligent temperature controllers. The hydraulic system is built into the bottom of the oil tank. The appearance is neat and stable. The workbench is equipped with casters and foot cups under it, allowing for easy movement

Features
The oil cylinder adopts an adjustable type, with high precision in the positioning of the bottom dead center and a repeatability accuracy reaching 0.01mm.
Optional heating devices and imported intelligent temperature controllers can be added to the upper and lower templates. The temperature difference can be precise to ± 1 degree, and the temperatures of the upper and lower molds can be controlled separately
An optional middle template can be added with a force sensor and a display to accurately show the force condition of the product
Optional electronic rulers or grating rulers and displays can be added to precisely show the displacement status of the oil cylinder

Application
The hydraulic hot press is suitable for punching and cutting silicone and plastic keys of various mobile phones or remote controls, as well as for the whole cutting and slitting of plastic products
Cutting of various protective films for LCD screens of mobile phones, digital cameras and laptops, precise cutting of various self-adhesive labels, trademarks, etc., and cutting in half, etc.
All kinds of PV, PE, PC and other membrane switches, membrane panel bulging and forming, etc.
Bonding and forming of various flexible circuit lines for laptop keyboards, etc.

Technical parameters
