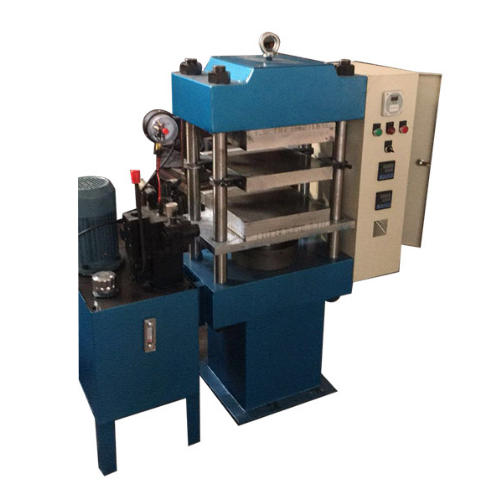

50T Rubber Mat Hot Plate Vulcanizing Curing Press Machine
Introduction
1. The 50-ton pressure forming machine is a relatively advanced pressure forming equipment, used for the vulcanization of various rubber products and the pressing of bakelite and plastic products. The semi-machine has the advantages of compact structure and convenient operation.
The electric heating is controlled and displayed by the T-2301 temperature indicator and regulator, featuring high control accuracy, intuitive temperature display and convenient adjustment.
The steam heating type adopts metal hoses, which have good sealing performance, long service life and high reliability.
2. The parallel oil supply method of low-pressure high-flow gear pumps and high-pressure low-flow gear pumps is adopted, which not only ensures the rapid heating of the hot plate but also saves electricity.
3. The adoption of an automatic pressure replenishment device ensures the stability of the product quality.
Main Technical
Maximum clamping pressure | 0.5MN (50 tons) |
Pressure of the hydraulic system | 16MPa |
Maximum stroke of the plunger | 200mm |
Ascending speed of the plunger | 16.5mm/s |
Heating plate size | 400X400mm |
Number of hot plates | 3 (can be increased as required) |
Distance between the hot plates | 100mm (can be enlarged as required |
Total power of the electric heating | 7.2Kw |
Heating steam pressure | 0.6-0.8MPa |
Temperature of the hot plate | 0-300 degrees |
Net weight | Approximately 1200 kg |
Motor power | 3KW, 1440r/min |
Dimensions | L1450XW650XH1620mm |
