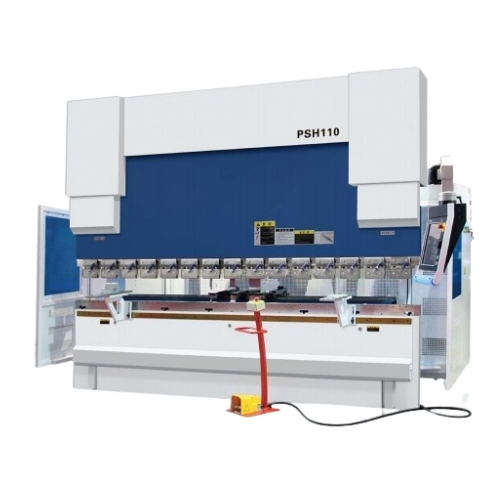

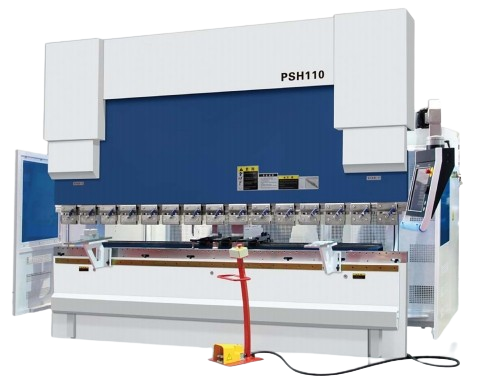

50T-320T Electro-Hydraulic Servo Sheet Metal Bending System CNC Press Brake
Features
The machine is in an overall welding and overall processing structure, and the main parts of machine are all analyzed by ANSYS finite element analysis software, which has ensured the reliability of machine and the precision of entire machine.
The CNC control system adopts Netherland DELEM, ltalian ESA, or Swiss CYBELEC products, which can achieve the functions of graphic programming for bending angle, compensation for angle amendment, automatic calculation also adjustment of bending pressure, automatic calculation of compensation for workbench distortion, extending length of workpieces, bending pressure for bottom bending,open distance, and automatic withdrawal of rear stopper, etc
Technical parameter
Specification can be customized as your actual needs!
Model | 50T1600 | 80T2500 | 110T2500 | 110T3200 | 110T4000 | |
Nominal pressure (KN) | 500 | 800 | 1100 | 1100 | 1100 | |
Max. Bending width (mm) | 1600 | 2500 | 2500 | 3200 | 4000 | |
Column spacing (mm) | 1300 | 2100 | 2100 | 2700 | 3300 | |
Throat depth (mm) | 205 | 350 | 410 | 410 | 410 | |
Cylinder stroke (mm) | 100 | 200 | 200 | 200 | 200 | |
Die setting height (mm) | 540 | 570 | 570 | 570 | 570 | |
Main power (KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | |
Oil volume (L) | 160 | 225 | 225 | 350 | 350 | |
Speed (mm/s) | Approaching | 230 | 230 | 220 | 220 | 220 |
Working | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | |
Returning | 140 | 140 | 140 | 140 | 140 | |
Dimension (mm) | L | 2200 | 3220 | 3240 | 4030 | 4830 |
W | 1450 | 1780 | 1780 | 1780 | 1780 | |
H | 2155 | 2650 | 2680 | 2680 | 2780 | |
Weight (kg) | 3700 | 5800 | 7800 | 8000 | 10000 | |
