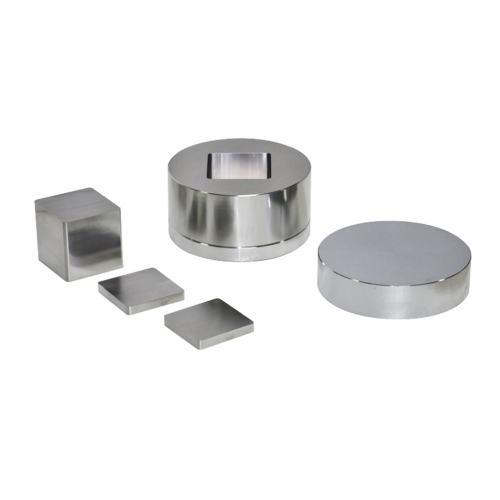

41-80mm Width Hydraulic Powder Pallet Press Rectangular Mold Die Set
Introduction
Rectangular molds are suitable for some slender and easily formed samples. The tablet size ranges from 3 to 100mm. Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMF-E |
Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-62 |
Sample size | Length 41-80mm (M) |
Cavity depth | 50mm (N) |
Overall dimensions | Φ128*160mm (L*H) |
Mold weight | 8kg |

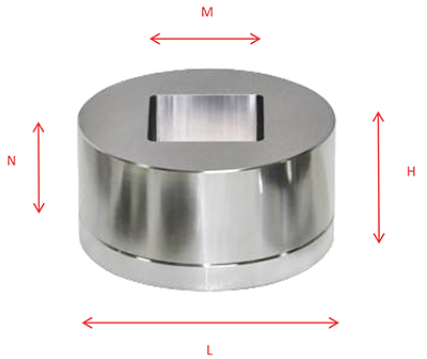

Schematic diagram of dimensions |  |
