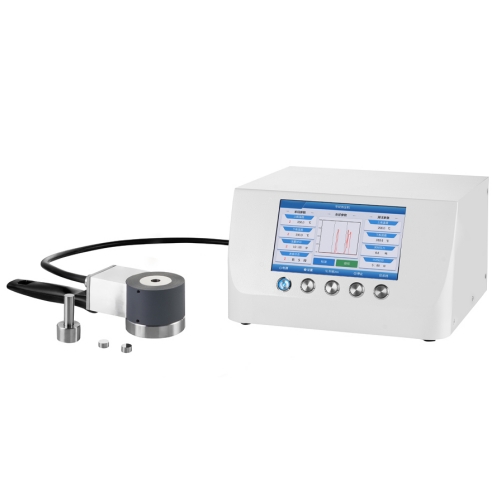

300C Cylindrical Heatable Heating Pressing Die For Powder Pallet Forming
Introduction
We are a professional manufacturer of powder tablet presses and molds. Our tablet presses are compact in size, feature high pressure, and offer precise pressure control. They have been widely applied in various industries such as scientific research, education, testing, pharmaceuticals, catalysis, and chemical engineering. Additionally, this product can be used in conjunction with Fourier transform infrared spectrometers and fluorescence spectrometers for sample preparation, and can replace similar imported products.
Technical parameter
Instrument model | PCH-M |
Press the shape of the sample |  |
Heating temperature | RT-300C |
Mold material | Alloy tool steel: 440C |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ10/13/15/20/30/40 (M) |
Cavity depth | 40mm (N) |
Overall dimensions | Φ78-105*138mm (L*H) |
Power supply | 300W (220V/110V) |
Mold weight | About 5-10kg |

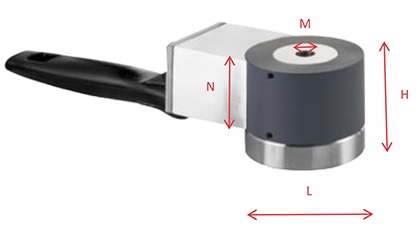

Schematic diagram of dimensions |  |
