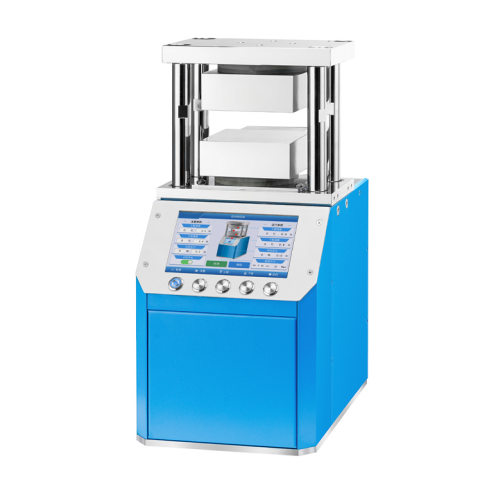

25T Laboratory Compact Automatic Hot Press Machine With 180x180mm Heating Plate
Technical parameters
Model | PP-600D1 | ||
Heating temperature | RT-300℃ | RT-500℃ | RT-800℃ |
Power | 1.8KW | 3KW | 5.5KW |
Pressure range | 0-25.0T | ||
Pressure accuracy | 0.1 ton | ||
Pressurization process | The 20-segment program pressurization can display the pressure spectrum | ||
Holding pressure time | Each section lasts up to 32,768 seconds and can also work for a long time without timing | ||
Constant temperature time | 1 second to ∞ seconds | ||
Temperature control accuracy | 0.1℃ | ||
Display screen | 7-inch touch screen | ||
Heating method | Multi-stage heating or cooling programs | ||
Heat insulation method | Imported heat insulation board | ||
Cooling method | Water-cooled rapid cooling [Water-cooled machine is optional] | ||
Mold size | 180*180mm (M*N) | ||
Workspace | 200*60mm | ||
Power supply | 220V/110V can be customized | ||
Size | 300*390*560mm (L*W*H) | ||
Weight | 200kg | ||

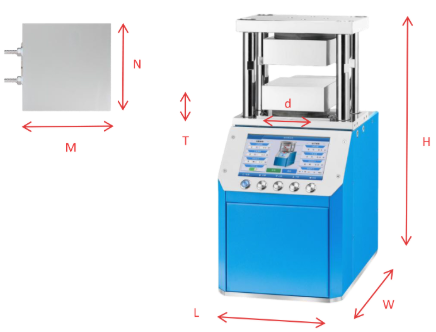

Schematic diagram of dimensions |  | ||
