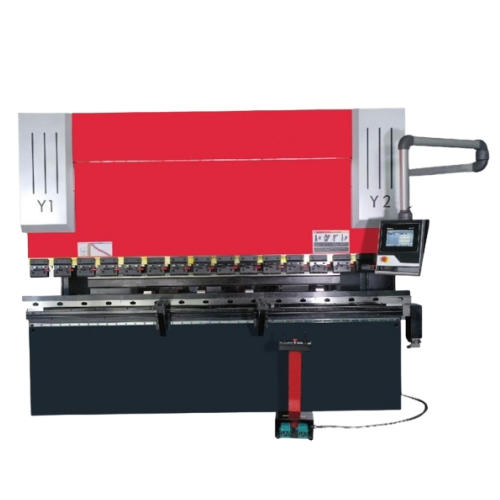

110T Oil-Electric Hybrid Drive Press Brake Machine For Sheet Metal Bending
Introduction
The EHP series Pressbrake is a model controlled by oil-electric hybrid drive and pump synchronously ,with higher precision, good energy saving effect, faster speed and high efficiency. It is suitable for high-precision and fast bending processing of various types of workpieces. It has higher parameters and configuration design,good choice for the high-end customers.
Technical parameter
110T-320T can be customized!
Model | 11032 |
Nominal pressure (T) | 110 |
Table length (mm) | 3200 |
Distance between columns (mm) | 2700 |
Throat depth (mm) | 400 |
Slider stroke (mm) | 200 |
Maximum opening height (mm) | 460 |
Fast-down speed (mm/s) | 230-170 |
Bending speed (mm/s) | 20-10 |
Return speed (mm/s) | 170-120 |
Motor power (KW) | 11 |
Fuel tank capacity (L) | 350 |
Bed length/arm length (mm) | 3500/4200 |
Total height of machine (mm) | 2650 |
Total width of the machine (mm) | 1500 |
