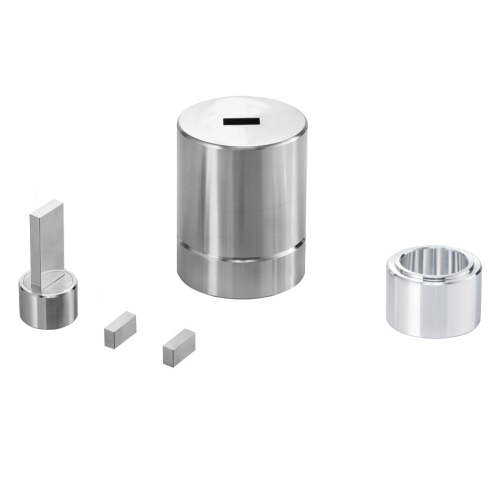

11-20mm Width Hydraulic Powder Pallet Press Rectangular Mold Die
Introduction
Rectangular molds are suitable for some slender and easily formed samples. The tablet size ranges from 3 to 100mm. Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMF-B |
Press the shape of the sample |  |
Mold material | 440C |
Indenter hardness | HRC60-62 |
Sample size | Length 11-20mm (M) |
Cavity depth | 40mm (N) |
Overall dimensions | Φ53*120mm (L*H) |
Mold weight | 1.4kg |

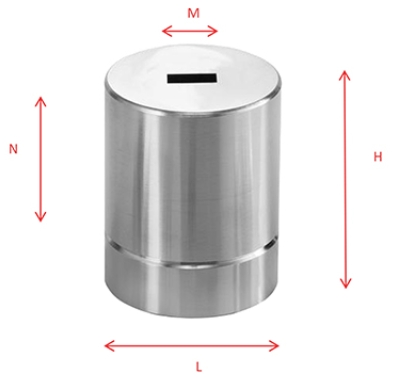

Schematic diagram of dimensions |  |
